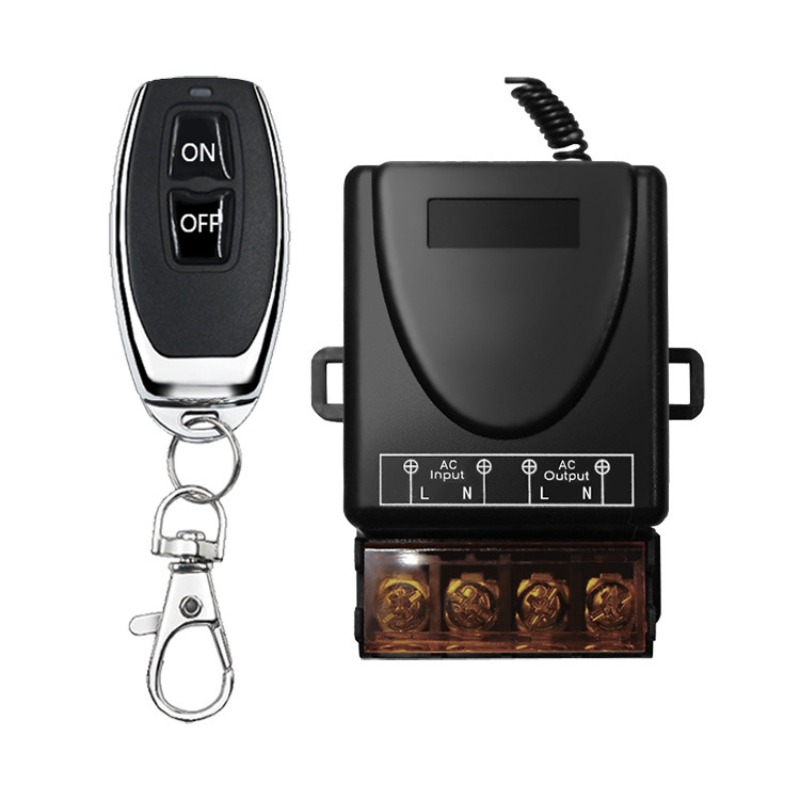

Heavy-Duty 30A RF Wireless Remote Relay Switch
Effortlessly command high-power appliances up to 328 ft away—straight through walls and doors.
Unmatched 30A Switching Power
Equipped with a robust built-in power relay featuring a 30A switching capacity. This controller provides exceptional switching performance, ensuring stable and reliable operation even under heavy electrical loads.
Perfectly engineered for demanding equipment like industrial fans, heaters, water pumps, and heavy-duty shop vacs.
Penetrate Walls with 328ft RF Range
Advanced RF technology empowers you to control your devices from a long distance. Experience a reliable signal that effortlessly passes through walls, floors, and solid doors.
With an effective operational range of 100 ft to 328 ft (without obstacles), you can turn on outdoor lighting or garage machinery from the comfort of your living room.
High-Level Security & Easy Re-Learn Mode
Security is paramount. The intelligent learning code system boasts a remarkably low repetitive rate, protecting your circuits from unauthorized or overlapping signals.
Lost a remote? No problem. The receiver features a re-learn mode allowing you to instantly delete old codes and pair a new remote control, ensuring you never lose command over your devices.
Limitless DIY Automation Possibilities

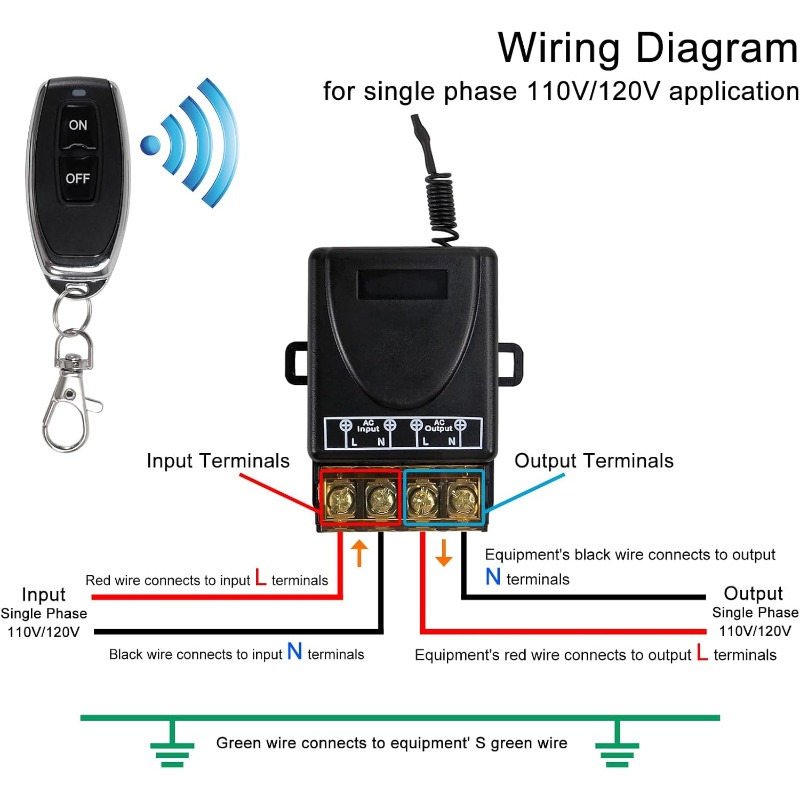

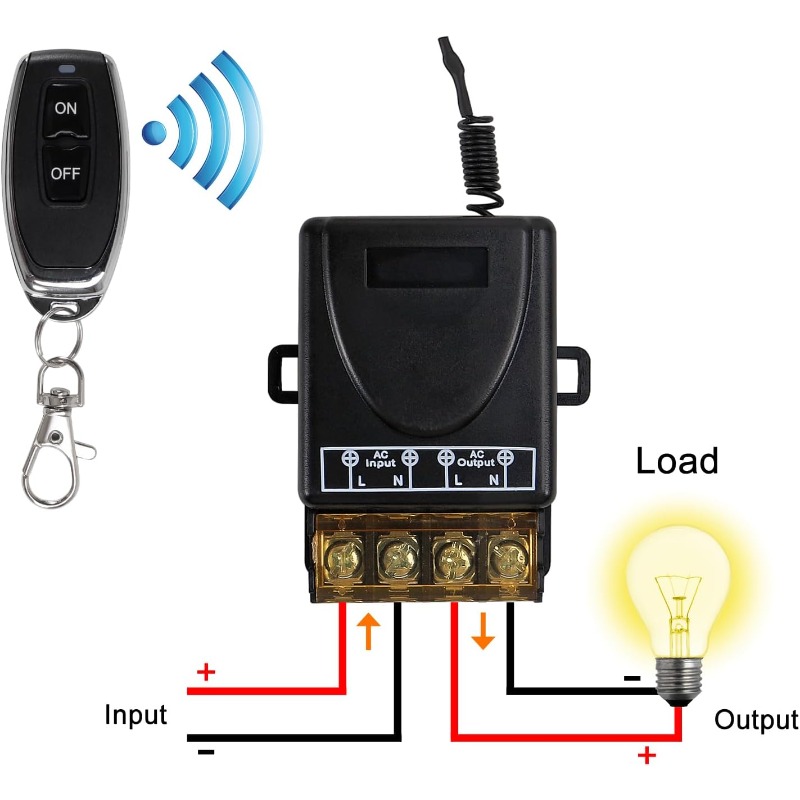

Installation is straightforward: simply wire the wireless RF switch between your power source and the device. You can completely customize the working mode according to your specific project needs.
From holiday lighting displays, small appliances, and air conditioners, to electric gates and industrial security alarms—this module provides infinite ways to play for serious DIY enthusiasts.
Technical Specifications
| Feature | Specification details |
|---|---|
| Operating Voltage | AC 90V - 256V |
| Operating Frequency | 315MHz / 433MHz |
| Standby Current | ≤10mA |
| Maximum Load Power | 3000W |
| Maximum Switching Capacity | 30 Amps (Heavy Duty) |
| RF Wireless Range | 100 ft - 328 ft / 30.5 m - 100.0 m (Depending on obstacles) |

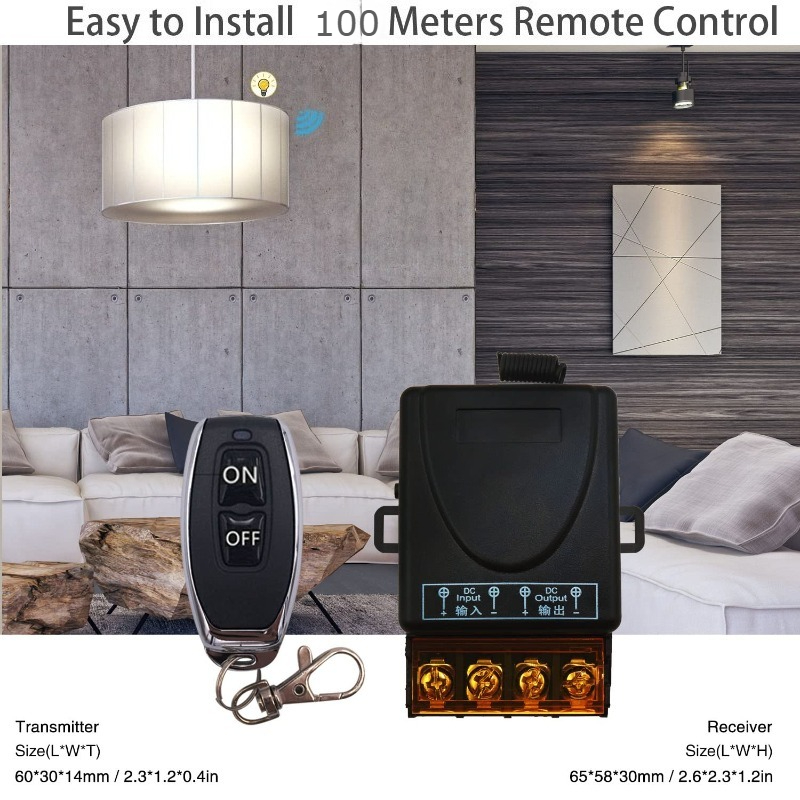

| Module Dimensions | Approx. 3.1 × 2.4 × 1.2 in / 8.0 × 6.0 × 3.0 cm |
| Weight | Approx. 5.3 oz / 150.0 g |
| Application Range | Lighting, AC, Heaters, Pumps, Shop Vacs, Alarms |
Frequently Asked Questions
Will the remote signal really work through thick walls?
Yes. The controller utilizes strong RF (Radio Frequency) technology designed specifically to penetrate physical barriers including walls, floors, and doors. While dense materials like concrete or metal can slightly reduce the maximum range, it performs exceptionally well for standard household and workshop setups.
Is this difficult to install for a DIY beginner?
The installation is highly convenient. You simply wire the receiver directly between your electrical power source and the device you wish to control. However, because this relay handles up to 30A of high current, we strongly recommend having basic electrical safety knowledge or consulting an electrician.
What happens if I lose the remote control?
You will never be permanently locked out of your system. The receiver features a highly secure learning code protocol. If you lose a remote, you can activate the "re-learn" mode on the receiver to delete the old security code and easily pair a brand-new replacement remote.
